Peter Meier 1000 Series Table Base

$135.16 - $221.49
No Sales Tax, Except CT
This is a custom/made-to-order item - Read Policy
 Free Shipping
Choose a product from the options above
View Cart

Product Reviews

5 2


  • 1000 Series Signature Line
  • 3-Leg Base comes with 3" Steel Column
  • 14-Leg Base comes with 4" Steel Column
  • Made out of cast iron
  • High quality and functional style
  • Ships via UPS/FedEx Ground

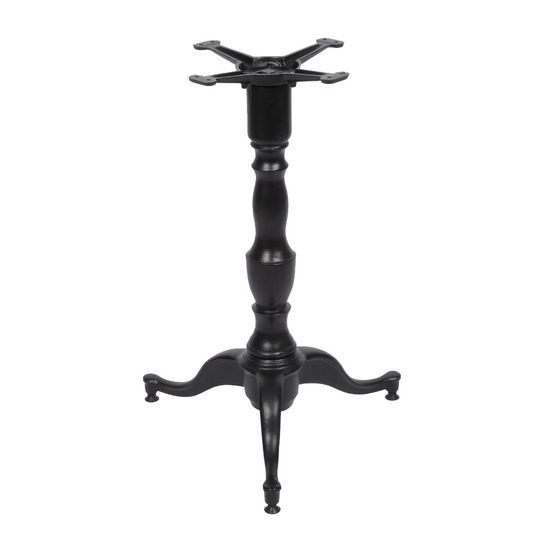

  • PM-TB1629: 22" (3 legs) Base Spread, 13" Spider Spread, 3" Column Dia., 30" x 32" Maximum Top Size
    PM-TB1630: 26" (3 legs) Base Spread, 13" Spider Spread, 3" Column Dia., 36" x 36" Maximum Top Size
    PM-TB1631: 32" x 32" Base Spread, 15" Spider Spread, 4" Column Dia., 54" Round Maximum Top Size


This 1000 Series Signature Line of Table Base by Peter Meier comes in your choice of 3 or 4 leg bases. Strong and durable because of their cast iron construction, the bases are finished in a Black Matte Wrinkle color. Easily assembled for indoor or outdoor use, they ship via UPS/FedEx Ground.


(W = side to side) (D = front to back) (H = top to bottom)

Peter Meier Table Shox 1/4" - 20-thread, Set of 4
$25.27, You Save: 50%
How Many?
Peter Meier Conny Tabletop Connector, Zinc, 3-1/2" diameter, (for joinging two table leaves together)
$35.12, You Save: 45%
How Many?
Peter Meier Footring in Black Matte for 3" Column Diameter Table Bases, Overall: 16" Diameter x 18" H
$47.14, You Save: 29%
How Many?
Ship Method:

    Ships via UPS/FedEx Ground

Product Reviews:
Awesome 3 weeks
by: Matthew ONeill     from: New city york, Ny      on: April 14, 2016
 Put two legs under 200lbs butcher block table. Wish I could submit a pick but they have been amazing so far, well made, no drops in the finish and delivered within 7 days.

great table base
by: JAMES L SMITH     from: MANSFIELD, Te      on: April 30, 2015
 Absolutely perfect base, it's supporting a cast iron sausage extruder in our kitchen and is heavy enough so that it will not tip over if the kids play with it. The matte black finish complements the cast iron well. I will have to buy a few more for other projects around the house.

Your questions that we answered:
Hi, Could I use two of the PM-TB1630 to support a 60" x 36" wood top?   - Asked about product PM-TB1630
 With item PM-TB1630, the vendor recommends per base a maximum top of 36" x 36". With your wooden top measuring 60" x 36", you should use 2 bases.
 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0)

What is the limit if you put a square table top on the 4 leg? Would 30" x 48" be OK?   - Asked about product PM-TB1631
 There is a suggested max weight capacity for a top of 125 lbs, but the size is what really matters. The max top size for the 32" x 32" 4 leg base is 54" round, however, the 4 leg may not work to distribute the weight evenly between the 30" side and the 48" side. We would suggest the Tri-Leg:
 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0)

I'm looking for pedestal base for a granite top about 30x20 inches-could be a little smaller granite- which would weigh approximately 75 pounds (at 18 pounds per square foot). Stability is critical, as nobody wants 75 pounds landing on a toe or a grand child! many thanks, indeed.   - Asked about product PM-TB1629
 The maximum suggested weight capacity is 125 lbs, but the size is the most important piece about the table bases. The maximum top size for that model is 30" x 22".
 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0)

I'm looking for a pedestal base for a rectangular table that I will have made (34" x 42"). Will one of these bases work for this size/shape table? If so, which one would you recommend? Also - wanting to know what "Base Spread" is vs "Spider Spread". Thanks!   - Asked about product PM-TB1631
 This base will work perfectly as long as the material is not granite or marble. The base spread is the measurement at the bottom or base of the item. The spider spread is the dimension at the top.

 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0)

What is the suggested weight limit for the PM-TB1631?   - Asked about product PM-TB1631
 These tops are not weight-rated.
The most important thing is the Maximum Top Size is 30" x 32"

 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0)

What is the weight limit for this base? Using for granite counter top that will be secured to wall for stability and weight distribution. thanks   - Asked about product PM-TB1629
 Maximum Weight Capacity is 125lbs
 100% of 2 people found this useful. Was this useful to you? Yes (2) | No (0)

I have a 36" round granite top. The maximum size for the base PM-TB1630 is 36 x 36. Will that work or is it better to go a size up. Would like to order today. Thank you.   - Asked about product PM-TB1630
 Because of the marble I would recommend going up one size.
 100% of 1 people found this useful. Was this useful to you? Yes (1) | No (0)

How heavy is this table base? Item # PM-TB 1630.   - Asked about product PM-TB1630
 The base for Item # PM-TB 1630 weighs 41 lbs.
 50% of 2 people found this useful. Was this useful to you? Yes (1) | No (1)
