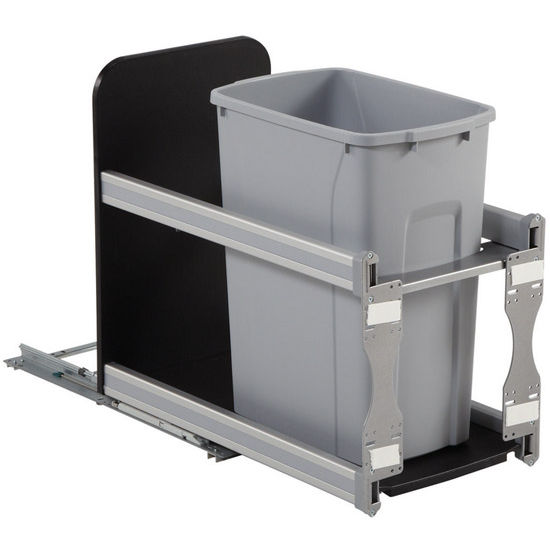

Hafele Single Bottom Mount Pull Out Trash Can with Soft Close, 35 Quarts (8.75 Gallons) & 50 Quarts (12.5 Gallons), Minimum Cabinet Opening: 12" Wide

Name: Hafele Single Bottom Mount Pull Out Trash Can with Soft Close, 35 Quarts (8.75 Gallons) & 50 Quarts (12.5 Gallons), Minimum Cabinet Opening: 12'' Wide
Brand: Hafele
Rating: 5 (3 reviews)

See More By (Hafele)

View Larger Image

White

Frosted Nickel / Platinum

Single Undermount Soft Close Waste Bin

Drawing illustration

Multiple Sizes & Finishes Available

$401.82 - $426.73

No Sales Tax, Except CT

Read 3 Reviews | Submit a Review

Check Shipping Times

Ask A Question (Read 2)

Product Reviews

5 3

Shop for similar items:

Bottom Mount Soft Close Single Waste Bin, Frosted Nickel, 35 Quart (8.75 Gallon), 9-5/8"W x 20-1/8"D x 18-13/16"H

$214.93

Built-In Double Pull-Out Bottom Mount Waste Bin with Soft & Silent Closing, 2 x 36 Qt (2 x 9 Gal), Chrome Frame &...

$216.11

"Easy Cargo 30" Pull-Out Double Waste Bins - 2 x 16 Quart (2 x 4 Gallon), White, Min. Cabinet Opening: 9-7/8" Wide

$144.86

Single Built-In Bottom Mount Pull-Out Waste Bin - 35 Quart (8.75 Gallon), Min. Cabinet Opening: 15" Wide

$156.49

Century Signature Bottom Mount Waste Unit, Maple, Prefinished, Double 34 Quart (8.5 Gallons) White Bins, 14-7/8" W x...

$657.77

Century Signature Bottom Mount Waste Unit, Maple, Prefinished, Double 34 Quart (8.5 Gallons) White Bins, 17-7/8" W x...

$665.67

Bottom Mount Soft Close Double Waste Bin, White, 2 x 35 Quarts (2 x 8.75 Gallons), 14-3/8"W x 23-1/8"D x 18-13/16"H

$290.94

Century Cascade Bottom Mount Waste Unit For Vanity, Baltic Birch, Prefinished, 34 Quart (8.5 Gallons) White Bin,...

$395.06

Corner Recycling Center with Three 32 Quart (8 Gallon) Bins, Chrome/White, with or without Door Mount, Min. Cabinet...

$320.01

Bottom Mount Soft Close Double Waste Bin, Birch Frame, White Bin, 2 x 50 Quart (2 x 12.5 Gallon), 16-13/16"W x...

$549.94

Single Side Mount Soft & Silent Waste Bin, White or Frosted Nickel Finish, Min. Cabinet Opening: 11-1/2" Wide

$294.17

Single Built-In Bottom Mount Pull-Out MX Trash Can, Steel, Anthracite with Gray Bin, 36 Qt (9 Gal) or 52 Qt (13 Gal)

$261.76

Built-In Single Pull-Out Bottom Mount Waste Bin with Soft & Silent Closing, 52 Qt (13 Gal), Champagne Frame/Champagne...

$211.90

Salice Pull-Out Bottom Mount Soft Close Double Waste Bin, Silver, 2 x 32 Quart (2 x 8 Gallon), 18"W x 19-5/8"D x...

$369.00

Salice Pull-Out Bottom Mount Soft Close Double Waste Bin, Silver, 2 x 32 Quart (2 x 8 Gallon), 15"W x 19-5/8"D x...

$379.00

Built-In Double Pull-Out Bottom Mount Waste Bin with Soft & Silent Closing, 2 x 36 Qt (2 x 9 Gal), Silver Frame & Grey...

$165.00

Salice Pull-Out Bottom Mount Soft Close Single Waste Bin, Silver, 35 Quart (8.75 Gallon), 12"W x 19-5/8"D x 19-1/2"H

$269.00

Century Edge Bottom Mount Waste Unit, Baltic Birch (No Edge Banding), Prefinished, Single 34 Quart (8.5 Gallons) White...

$408.88

Century Signature Bottom Mount Waste Unit, Maple, Prefinished, Single 50 Quart (12.5 Gallons) White Bin, 11-7/8" W x...

$683.45

Swing-Out Waste Bin for Vanity or Kitchen Cabinet, Stainless Steel Can/White Lid, Min. Cabinet Opening: 15-3/8'' Wide

$84.62

Salice Pull-Out Bottom Mount Soft Close Double Waste Bin, Silver, 2x 35 Quart (2 x 8.75 Gallon), 21"W x 19-5/8"D x...

$459.00

Bottom Mount Soft Close Single Waste Bin, White, 20 Quart (5 Gallon), 14-3/8"W x 16"D x 17-5/16"H

$224.42

Century Edge Bottom Mount Waste Unit, Baltic Birch (No Edge Banding), Prefinished, Double 50 Quart (12.5 Gallons)...

$480.00

Century Signature Bottom Mount Waste Unit, Maple, Prefinished, 50 Quart (12.5 Gallons) White Bins, 17-7/8" W x 22-1/2"...

$724.93

Century Cascade Bottom Mount Waste Unit, Baltic Birch, Prefinished, Double 34 Quart (8.5 Gallons) White Bins, 14-7/8"...

$547.16

Bottom Mount Soft Close Double Waste Bin, Frosted Nickel, 2 x 20 Quart (2 x 5 Gallon), 14-3/8"W x 20-1/8"D x 17-5/16"H

$261.65

Built-In Double Pull-Out Bottom Mount 24"H Waste Bin with Soft & Silent Grass Elite Slides, 2 x 52 Qt (2 x 13 Gal),...

$400.73

Hailo Euro Cargo S Built-In Pull-Out Side Mount Double Waste Bin with Soft Close, Gray, 2 x 31.7 Quarts (8 Gallon),...

$357.56

Bottom Mount Soft Close Double Waste Bin, White, 2 x 27 Quart (2 x 6.75 Gallon), 11-3/8"W x 22-7/16"D x 18-3/4"H

$289.59

Hailo "Easy Cargo 20" Automatic 21 Quarts Single Waste Bin Pull-Out, Trash Can, Slate Gray, for Minimum Cabinet Width...

$118.41

Features:

Bottom mount soft close heavy duty waste bin
Single bin with soft-close technology
Includes One 35 quarts (8-3/4 gallons) or 50 quarts (12-1/2 gallons) trash bin
Width of sliding assembly is 12"
Frosted Nickel/Platinum or White finish
Color coordinated aluminum side rails provide stability while concealing slide hardware
Soft close technology eliminates slamming and provides full closure of the bin every time
Washable, solid backsplash & floor prevents debris from falling through to the floor/cabinet
Easy to clean
Installs in minutes using self-aligning brackets secured with only 4 screws
Door brackets (included) are reversible to adapt to openings up to 3"
100 Lb. Load Capacity
Lids & replacement bins also available - see below
Weight: 19.7 - 22.1 Lbs.
If using optional Lid, add 3/4" to the overall height

Description:

Available in two (2) sizes with your choice of frosted nickel/platinum or white finishes, this Undermount Pull Out Trash Can with Soft Close from Hafele is the perfect accessory for your home. Featuring heavy-duty slides, this under cabinet trash can has soft-close technology, which eliminates slamming and provides full closure of the bin every time. The door-mounted bin also has color coordinated aluminum side rails that provide stability while concealing mounting hardware in the trash cabinet. Easily installed with only four screws, this bin is easy to clean and provides easy access for your waste disposal.

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

(Frameless Minimum Cabinet Opening: Watch for Position of Hinge Block & Allow for its Depth if Necessary)
Click to View Frame Face vs. Frameless Cabinets

For Face Frame or Frameless Cabinets
** Note: If Using Lid, Add 3/4" to Height

35 Quarts:
Minimum Cabinet Opening Dimensions: 12" W x 22-5/8" D x 19-3/16" H
Overall: 11-13/16" W x 22-7/16" D x 19-3/16" H
Width of Sliding Assembly: 11-13/16" W
Capacity: 35 Quarts (8.75 Gallons)
Maximum Load Capacity: 100 lbs.

50 Quarts:
Minimum Cabinet Opening Dimensions: 12" W x 22-5/8" D x 23-5/16" H
Overall: 11-13/16" W x 22-7/16" D x 23-1/4" H
Width of Sliding Assembly: 11-13/16" W
Capacity: 50 Quarts (12.5 Gallons)
Maximum Load Capacity: 100 lbs.

Optional Accessories:

Hafele Foot Pedal

**For Automatic Extension of a Waste Bin
**Hands free - Allows the trash can to be pulled open with foot
**Easy installation

Additional Information:

Detailed Specifications (PDF)

Ship Method:

Ships via UPS/FedEx Ground

Replacement Bins and Lids:

May we also suggest...

View Similar Items

Product Reviews:

	Excellent product. Well constructed and easy to install. by: Fred Siems ✔Verified Buyer from: The Villages, FL on: April 21, 2014
	Excellent product, well constructed and easy to install. Aligning the door was a bit of a challenge, but it worked out beautifully. Should have installed one years ago.

	Solid - like you would expect from Hafele by: Steve from: Denver, CO on: July 16, 2012
	We bought this unit to replace a cheap (half the price) "wire" constructed KV unit. This one is being used in a commercial office and therefore needed to be sturdy - and it is. Pulls out nicely, doesn't rock back and forth and the install is very simple. They provide two-sided tape to help position and mount the door.

	excellent, easy to install by: josh ✔Verified Buyer from: bar harbor, ME on: June 21, 2012
	Very quick and easy to install and excellent quality. I recommend this to all of my clients looking for a pull-out waste bin. These units hold up well as well.

Your questions that we answered:

	If my cabinet door width is 20" can I use this even if the door is that much wider than the width of 11-13/16. I would like the waste bin to be all the way to the left side of my cabinet. there are mechanicals from the stove top on the right side that take up that space. - Asked about product HA-503.11.503
		Yes, it should still work.
		- Answered on May 5, 2014
		0% of 0 people found this useful. Was this useful to you? Yes (0) \| No (0)

	The width of my cabinet opening is exactly 12" will this work? - Asked about product HA-503.11.503
		Yes, it will work.
		- Answered on September 20, 2014
		75% of 4 people found this useful. Was this useful to you? Yes (3) \| No (1)

Reference:

This item(s) is also sometimes listed under the following manufacturer numbers:

Hafele
503.11.503, 503.11.513, 503.11.703, 503.11.713
