$363.01 - $403.73 No Sales Tax, Except CT
Product Reviews
- Available Options:
- Type: 120 CFM Inline Fan, 210 CFM Inline Fan, 210 CFM Dual Speed Inline Fan

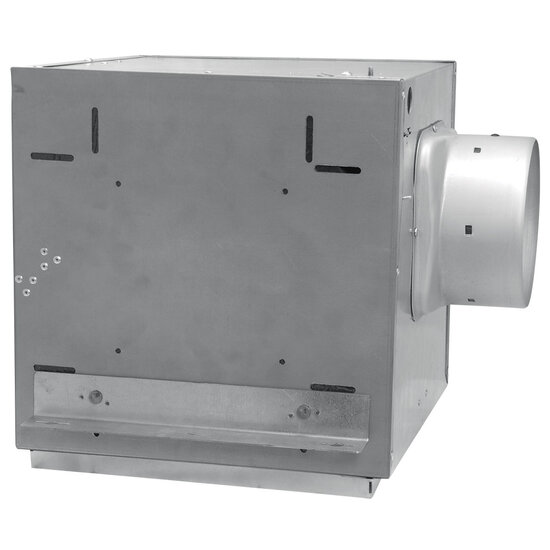

- Commercial inline exhaust fans can be adapted for top discharge mounting, straight through inline or right angle inline (hardware not included).
- Insulated housing with motors & blowers mounted on vibration isolators.
- 6'' Round duct connector with gasketed damper protects against back drafts.
- Balanced polymeric dual inlet blower wheel with enclosed 4 pole high efficiency, permanently split capacitor motor (PSC); life time lubrication, suitable for continuous operation.
- Convertible to 6'' round inlet with model IA613R adapter (available separately)
- Unit mounts with the 2 supplied housing mounting angles that can be adapted for inline or top discharge mounting (hardware not provided).
- Easy wiring access via either internal or external wiring compartment cover.
| Models | AKZA150 | AKZA200 | AKZA200D |
|---|
| CFM @ .2 SP | 120 | 210 | 200 / 80 |
| ENERGY STAR® certified | No | Yes | Yes |
| Duct Size | 6'' | 6'' | 6'' |
| Collar / Damper | Metal | Metal | Metal |
| Inlet Opening | 10-9/16'' x 10-11/16'' | 10-9/16'' x 10-11/16'' | 10-9/16'' x 10-11/16'' |
| Option 6'' Inlet Adapter | IA613R | IA613R | IA613R |
| Mounting | Mounting angles | Mounting angles | Mounting angles |
| Housing | 23 gauge metal | 23 gauge metal | 23 gauge metal |
| Insulation | 1'' thermal and acoustical | 1'' thermal and acoustical | 1'' thermal and acoustical |
The high volume series by Air King is available in multiple CFM levels to meet whatever your ventilation needs are. Air King’s commercial inline exhaust fans provide proper ventilation for larger areas such as conference rooms, locker rooms, commercial bathrooms and other larger areas.
(W = side to side) (D = front to back) (H = top to bottom)Size: 13-1/16" W x 12-9/16" D x 12-9/16" H
Ships via UPS/FedEx Ground
|
