Hafele Swing-up Front Fitting Lid Stay, Free Swing, 14-9/16" - 31-1/2" (370-800mm) Door Height, 4-33 lb Flap Weight

Hafele Swing-up Front Fitting Lid Stay, Free Swing
Cabinet w/ Fitting - View 1
Hafele Swing-up Front Fitting Lid Stay, Free Swing
Cabinet w/ Fitting - View 2
Hafele Swing-up Front Fitting Lid Stay, Free Swing
Cabinet w/ Fitting - View 3
Hafele Swing-up Front Fitting Lid Stay, Free Swing

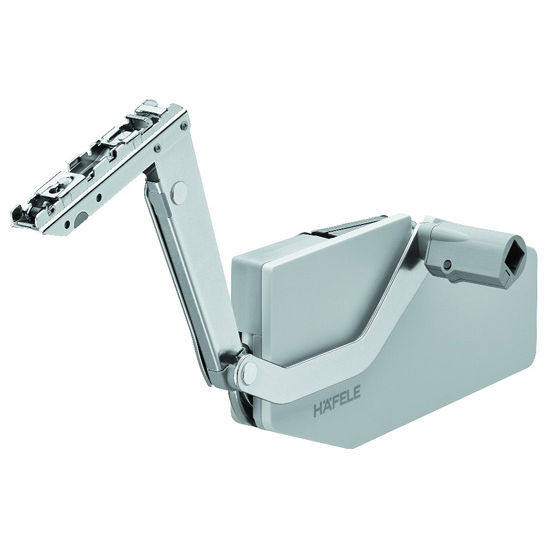

Fitting View 1
Hafele Swing-up Front Fitting Lid Stay, Free Swing
Fitting View 2
Hafele Swing-up Front Fitting Lid Stay, Free Swing
Fitting View 3
Hafele Free Up/Swing Crossbar, Aluminum Anodized
Crossbar
Ideal for large front panels

Price $148.74
No Sales Tax, Except CT
Shipping:
 Free Shipping
Model:
Choose a product from the options above
Qty?
View Cart

Product Reviews

Product & Installation Videos:


    Hafele Swing-up Front Fitting Lid Stay, Free Swing Installation Video


Features:

  • Swing-up Front Fitting Lid Stay - Free Swing
  • 14-9/16" - 31-1/2" (370-800mm) Door Height
  • 4-33 lb Flap Weight
  • For one-piece wood, glass or aluminum frame doors
  • Full access to the cabinet contents
  • Ideal for large front panels
  • Modern design thanks to clear-cut contours
  • Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for extremely pleasant operating feeling
  • Rational and time-saving assembly provided by plugs, pre-mounted Euro screws and clip fixing of front panel and cross strut, eccentric adjustment of front panel
  • Adjustment facility: Height adjustment ±1.5 mm, side adjustment ±1.5 mm, tilting angle ±1.5°, holding power
  • Note: Use two Free swing sets for door widths ≥1800 mm (70-7/8")
  • Includes: 1 swing-up front fitting set (right/left), Front mounting material for wood doors or doors with wide aluminum frame, Installation instructions, Paper drilling template, 1 Cover cap set (2 pcs. 1 left/1 right)
  • Made of Steel
  • Gray finish
  • Crossbar and adapters for glass front panels or narrow aluminium frames (if applicable) must be ordered separately - See Accessories

ModelS1swS2swS3swS4swS5swS6swS7swS8swS9sw
 372.34.500372.34.510372.34.520372.34.501372.34.511372.34.521372.34.502372.34.512372.34.522
Door heightFlap weight lbs.
370–500 (14 9/16"–19 11/16")4–7 lbs.––7–12 lbs.––11–19 lbs.––
500–670 (19 11/16"–26 3/8")–6–10 lbs.––10–19 lbs.––18–30 lbs.–
670–800 (26 3/8"–31 1/2")––7–12 lbs.––12–22 lbs.––18–33 lbs


Description:

For one-piece wood, glass or aluminum frame doors, this Swing-up Front Fitting Lid Stay - Free Swing - Free Up by Hafele can be used with a 14-9/16" - 31-1/2" (370-800mm) Door Height and a 4-33 lb Flap Weight. Ideal for large front panels, the lid stay has a modern design with clear-cut contours as well as minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for extremely pleasant operating feeling.

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

Accessories:
HA-372.91.599
Hafele Door Mounting Bracket Adapter, For Narrow Frame Aluminum Doors, Left or right hand use, nickel-plated
$11.78
$17.77, You Save: 34%
How Many?
HA-372.33.692
Hafele Free Up/Swing Crossbar, 474mm Length, Aluminum Anodized
$3.21
$5.00, You Save: 36%
How Many?
HA-372.33.694
Hafele Free Up/Swing Crossbar, 774mm Length, Aluminum Anodized
$4.41
$10.00, You Save: 56%
How Many?
HA-372.33.696
Hafele Free Up/Swing Crossbar, 1074mm Length, Aluminum Anodized
$110.00
$120.00, You Save: 8%
How Many?
HA-372.33.698
Hafele Free Up/Swing Crossbar, 1674mm Length, Aluminum Anodized
$130.00
$135.00, You Save: 4%
How Many?
HA-372.91.598
Hafele Glass Gluing Adapter, For All-Glass Front Panels, Stainless Steel, Brushed
$148.74
$224.44, You Save: 34%
How Many?
Ship Method:

    Ships via UPS/FedEx Ground


Reference:

    This item(s) is also sometimes listed under the following manufacturer numbers:

    HafeleHafele
    372.34.522, 372.34.500, 372.34.501, 372.34.502, 372.34.510, 372.34.511, 372.34.512, 372.34.520, 372.34.521
