Tresco by Rev-A-Shelf 12/24VDC 60W/96W Round LED Recess or Surface Mount Controllers for Single Color Dimmable Low Voltage Lights

TR-L-RSDS-BL-1: 12 / 24VDC 60W/96W Round Single Door Sensor, Black
TR-L-RSDS-NI-1: 12 / 24VDC 60W/96W Round Single Door Sensor, Nickel
TR-L-RSDS2-BL-1: 12 / 24VDC 60W/96W Round Two Door Sensor, Black
TR-L-RSDS2-NI-1: 12 / 24VDC 60W/96W Round Two Door Sensor, Nickel
TR-L-RSDIM-NI-1: 12 / 24VDC 60W/96W Round Touch Dimmer, Nickel
Lifetime Guarantee

$30.59 - $37.38
No Sales Tax, Except CT
 Free S/H on Tresco by Rev-A-Shelf orders over $99!
Choose a product from the options above

Product Reviews

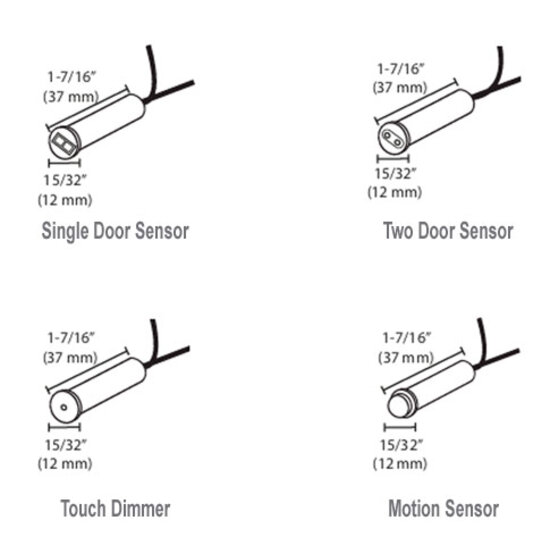

  • Round LED Recess/Surface Mount Controllers
  • Controls all Trescoฎ single color dimmable low voltage lights
  • Available Options:
    • Controller Type: Single Door Sensor, Two Door Sensor, Touch Dimmer
    • Finish: Nickel, Black
  • Max Wattage: 12VDC/60W; 24VDC/96W
  • 79” (2 m) input cord and 6” (152 mm) output cord attached
  • Recess or surface mount with included surface mount clip
  • Single or Multi Door Sensor, Motion Sensor, & Touch Dimmer Controllers available
  • Improved smaller design allows controllers to be easily recessed using a 1/2” (13 mm) drill bit
  • The addition of small connectors allow for wire shortening and easier wire management during install
  • Black or nickel finishes
  • Surface mount plate packaged with each controller
  • Can mount inside cabinet or drill hole and have top sticking out for motion

    Single Door Sensor:
  • Door Open - Light On
  • Door Closed - Light Off
  • Sensor Range: 1/16” - 2” (2 mm - 50 mm)

    Two Door Sensor:
  • Either Door Open - Light On
  • Both Door Closed - Light Off
  • Sensor Range: 1/16” - 2” (2 mm - 50 mm)

    Touch Dimmer:
  • Touch on/off
  • 0-100% dimming control
  • Hold finger down for dimming
  • Touch dimmer once to turn on/off
  • Power failure memory (retains last setting)


These Tresco by Rev-A-Shelf 12/24VDC 60W/96W Round LED Recess/Surface Mount Controllers are available in nickel or black finishes. The controllers are the perfect accessory for any LED light, ensuring you can control the lights in your room however you want to. With a new standard 1/2” (13 mm) diameter, shorter length and easy simple connect connectors for easy wiring, Round Controllers are available in a single door, two door, touch dimmer and motion sensor versions, black or nickel finishes and can control all Tresco 12/24VDC single color lights, you are sure to find the best fit for your home.


(W = side to side) (D = front to back) (H = top to bottom)

Ship Method:

    Ships via UPS/FedEx Ground
