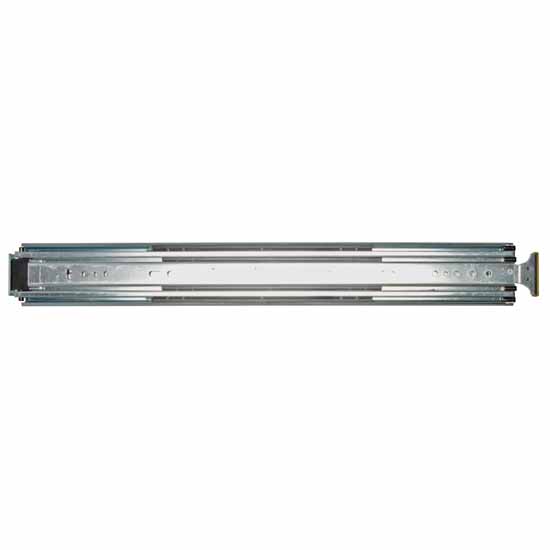

Knape & Vogt Lock-in/Lock-out, Extra Heavy Duty Side Mounted 100-500 lb Ball Bearing Drawer Slide in Zinc Finish

Knape & Vogt  Lock-in/Lock-out, Extra Heavy Duty Side Mounted 150-500 lb Ball Bearing Drawer Slide in Zinc Finish
Situational Image
Knape & Vogt  Lock-in/Lock-out, Extra Heavy Duty Side Mounted 150-500 lb Ball Bearing Drawer Slide in Zinc Finish
Drawer Slide
Sold Per Each - Not As Sets

$89.23 - $348.30
No Sales Tax, Except CT
 Free S/H on Knape & Vogt orders over $99!
Choose a product from the options above

Product Reviews

Shop for similar items:


  • Knape & Vogt Extra Heavy-Duty Over Travel Drawer Slide
  • Finish: Zinc
  • Available Lengths: 12'' - 60''
  • Slide Class: Extra Heavy Duty
  • Slide Type: Ball Bearing
  • Mounting: Side
  • Open Close Feature: Lock-in/Lock-out
  • Material: Steel
  • Bearing Type: Steel Ball Bearing
  • Disconnect: Non Disconnect
  • Action: Telescopic movement on ball-bearings
  • 100 to 500 lbs load rating based on use:
    - Modest use: 500 lbs.
    - Normal use: 400 lbs
    - Vehicular use: 300 lbs.
    - Flat mount use: 100 lbs
  • Applicable for computer servers and hard drive storage bays, large pantry pull-outs and toolboxes
  • Used for mobile and vehicular applications: RV built-in storage, battery trays, service truck drawer stacks
  • Intuitive uni-directional release/closure
  • Removable, ergonomic handle
  • Spring-activated latches for vertical and horizontal mounting
  • Recommended Fasteners: #10 (82 degree) flathead machine screw on cabinet member and #10 panhead machine screw on drawer channel
  • Limited Lifetime Warranty


Knape and Vogt extra heavy-duty full extension lock-in/lock-out drawer slide designed for heavy-duty storage, workstations, tool storage, RV vehicles, mobile carts, and automotive. With a 3/4" side clearance this slide is recommended for drawers up to 48" wide. Load rating and width rating are dependent on the application. This drawer slide features an ergonomic uni-directional release/closure and removable handle. Supports loads from 100 to 500 lbs, depending upon the application. It features spring-activated latches for vertical and horizontal mounting and a non-handed design and industry-standard mounting hole patterns for quick and easy installation.


(W = side to side) (D = front to back) (H = top to bottom)

Slide Clearance: .75" + .03" - 0" on each side
Slide Height: 3" [76.2mm]
Lengths: 12'' - 60''
Ship Method:

    Ships via UPS/FedEx Ground

Your questions that we answered:
Ask a questionhi, are these quick disconect /removable? they say "non-disconect" so i dont think so...   - Asked about product KV-8908B-48
 AnswerItem KV-8908B-48 does not have an option for disconnect.
 - Answered on January 26, 2022
 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0)

This item(s) is also sometimes listed under the following manufacturer numbers:

Knape & VogtKnape & Vogt
8908B-12, 8908B-14, 8908B-16, 8908B-18, 8908B-20, 8908B-22, 8908B-24, 8908B-26, 8908B-28, 8908B-30, 8908B-32, 8908B-34, 8908B-36, 8908B-40, 8908B-42, 8908B-44, 8908B-48, 8908B-60
