Hafele Glass Door Cabinet Hinge 50mm (2'') Height, 180° Opening Angle

See More By (Hafele)

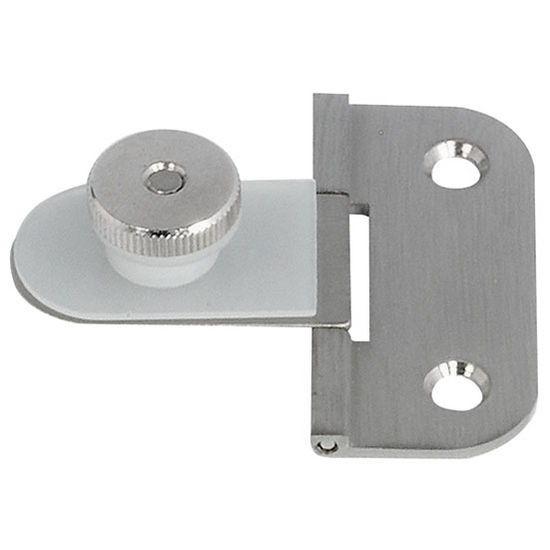

Hafele 180° Glass Door Hinge in Brass Matt, 50mm (2'') H

View Larger Image

Brass Matt

Nickel Plated Matt

Illustration

Mounting screws may not be available due to supplier shortages
For Lightweight Glass Inset Doors

$17.26 - $17.84

No Sales Tax, Except CT

Read 5 Reviews | Submit a Review

Check Shipping Times

Ask A Question

Product Reviews

4.8 5

Shop for similar items:

180° Inset Glass Door Cabinet Hinge in Stainless Steel, 38.5mm (1-1/2'') H

$11.70

Overlay Glass Door Cabinet Hinge in Chrome Plated, 51mm (2'') H

$34.42

Inset Glass Door Cabinet Hinge in Chrome Plated, 51mm (2'') H

$33.70

90° or 180° Inset Glass Door Top/Bottom Cabinet Hinge in Aluminum, 30mm (1-3/16'') H

$21.35

180° All Metal Inset Glass Door Cabinet Hinge, Pair, Textured Chrome Plated Matt, 40mm (1-5/8'') W

$20.24

Single Glass Door Lock Cabinet Hinge, Alike #D20 in Aluminum, 40mm (1-9/16'') H

$14.95

180° Inset Glass Door Cabinet Hinge in Chrome Plated Polished, 38.5mm (1-1/2'') H

$9.45

5-K 270° Five Knuckle 13/16'' Overlay Door Cabinet Hinge Grade 1 in Dull Chrome Plated

$5.23

5-K 270° Five Knuckle 3/4'' Overlay Door Cabinet Hinge Grade 1 in Powder Coated Chrome

$4.46

Aximat® 300 230° Inlay Glass To Wood Door Cabinet Hinge in Matt Nickel

$35.19

Aximat® 300 270° Inlay Glass To Glass Door Cabinet Hinge in Matt Nickel

$47.72

5-K 270° Five Knuckle 13/16'' Overlay Door Cabinet Hinge Grade 1 in Stainless Steel

$13.50

Clarior 95° Glass Door Cabinet Hinge in Nickel Plated Matt, 40mm (1-5/8'') W

$15.91

5-K 270° Five Knuckle 13/16'' Overlay Door Cabinet Hinge Grade 1 in Powder Coated Chrome

$4.44

Features:

Hafele 180° Inset Glass Door Hinge
Material: Brass
Finish: Brass Matt or Nickel Plated Matt
Maximum Door Opening Angle: 180°
For Lightweight Glass Doors
Sold Per Piece
Requires 7mm (5/64'') Drill Hole in Glass
Screw-Mounted
Exposed-Knuckle Hinge with 3mm (1/8'') Horizontal Adjustment for Inset Doors
Thumbscrew Secures Glass
Reversible: Can be Used Left or Right
For Glass Thicknesses 6mm (1/4'')
Maximum Door Weight: 4kg (8.8 lbs.)
Maximum Door Size: Width: 350mm (13-3/4''), Height: 800mm (31-1/2'')
Screws: Not Included (Uses #6 Flat Head Screws)

Description:

The 180° Glass Door Cabinet Hinge by Hafele is screw-Mounted for inset doors, an exposed-knuckle hinge with 3mm (1/8'') horizontal adjustment, measures 50mm (2'') in height and available in Brass Matt or Nickel Plated Matt finish.

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

32mm (1-1/4'') W x 50mm (2'') H

Specifications

Optional Accessories - Screws:

Ship Method:

Ships via UPS/FedEx Ground

May we also suggest...

View Similar Items

Product Reviews:

	... by: Stounder ✔Verified Buyer from: AURORA, IL on: March 11, 2021


	GREAT!!!!! by: steve ✔Verified Buyer from: allen, tx on: December 11, 2018
	EXACTLY WHAT I WAS LOOKING FOR!! GREAT QUALITY!!!

	works well on glass doors. by: Tiffany Dill ✔Verified Buyer from: Schererville, In on: December 4, 2018


	... by: John Pilotte ✔Verified Buyer from: Highland Park, Il on: November 14, 2018


	Works great by: C.H. ✔Verified Buyer from: Schererville, IN on: August 23, 2016
	Great item, smooth opening and closing.

Reference:

This item(s) is also sometimes listed under the following manufacturer numbers:

Hafele
361.85.609, 361.85.501
