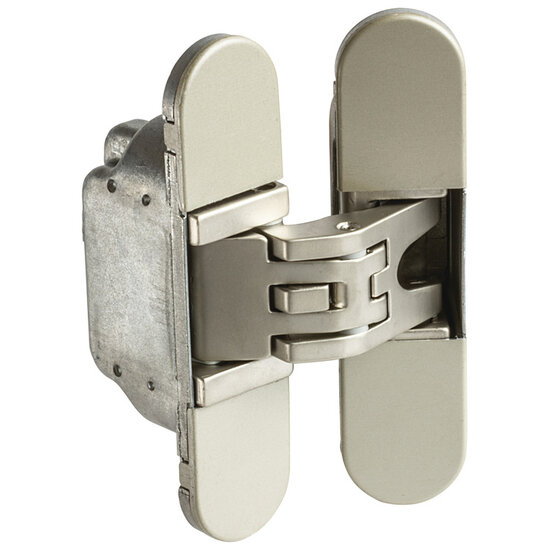

Hafele Startec H2 3D Adjustable Door Hinge

Shown in Satin Chrome Finish
Product View
Product View
Specifications
Specifications
Mounting screws may not be available due to supplier shortages

Price $97.88
No Sales Tax, Except CT
Shipping:
 Free S/H on Hafele orders over $99!
Model:
Choose a product from the options above
Qty?

Product Reviews

Shop for similar items:

Features:

  • Hafele Startec H7 Concealed Door Hinge
  • Material: Zinc alloy
  • Finishes: Satin Chrome, Satin Nickel, Polished Gold
  • Application: For flush interior wood doors
  • 3D Adjustable
  • Suitable for left-hand or right-hand installation
  • Max. Door Weight (2 Hinges): 99 lbs.
  • Max Door Weight (3 Hinges): 132 lbs.
    Note: When using the receiving element, the milling dimensions may change.


Description:

Applicable for flush interior wood doors, these Startec 3D adjustable door hinges are crafted from zinc alloy and available in satin chrome, satin nickel, and polished gold finishes. Each door hinge is suitable for left or right hand installation and are continuously three dimensional adjustable.

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

Overall Dimensions: 2-7/8"W x 4-1/2"H (72 x 115 mm)
Door Weight: <= 99 lbs. (45 kg) with 2 hinges; <= 132 lbs. (60 kg) with 3 hinges
Opening Angle: <= 180°
Door Width: <= 35-7/16" (900 mm)
Door Height: <= 78-3/4" (200 mm); <= 82-11/16" (200 mm) use 4 hinges
Door Thickness: >= 1-1/4" (32 mm)
Adjustability: Continuously three dimensional adjustable; Height +/- 1/8” (3 mm); Lateral +/- 1/8”/-1/16" (3 mm/-2 mm); On contact +/- 1/32” (1 mm)
Ship Method:

    Ships via UPS/FedEx Ground


Reference:
This item(s) is also sometimes listed under the following manufacturer numbers:

HafeleHafele
927.91.544, 927.91.546
