Broan Sky Series Energy Recovery Ventilator (ERV) 100 CFM, Side or Plus Side Ports

ERV 100 CFM with Side Ports
ERV 100 CFM with Side Ports
ERV 100 CFM with Plus Side Ports
ERV 100 CFM with Plus Side Ports

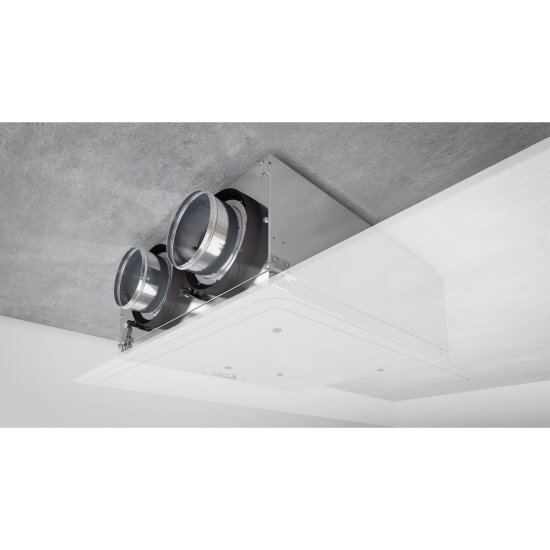

Installation Illustration
Installation Illustration
Ideal for New Construction in Southern Regions

Step 1: Choose Ventilation Port
Step 2: Choose Optional Wall Control Click Here
Step 3: Choose Optional Accessories Click Here

$1624.39 - $1648.17
No Sales Tax, Except CT
Shipping:
 Free Shipping
Model:
Choose a product from the options above
Qty?

Product Reviews

Shop for similar items:

Features:

  • Broan Sky Series Energy Recovery Ventilator (ERV) 100 CFM
  • Available with Side or Plus Side Ports Option
  • Venmar® Core Technology Decreases Excessive Moisture by Up to 51%
  • Built-In Sensor Decreases Ventilation During Periods of Excessive Humidity
  • Ideal for New Construction in Southern Regions
  • Perfect Solution for Homes in Regions with Excessive Humidity
  • Mounting Application: Ceiling Mounted
  • Minimize the Installation Footprint
  • Provides Easy Access for Routine Maintenance
  • Ceiling-Mounted Brackets Fits Between 20"–25" Trusses
  • Affordable Solution for New Construction Due to Faster, Easier Installation
  • Recommended: All Wiring Should be Done by Qualified Licensed Electrician
  • Installing Fresh Air System
  • HRV and ERV Venmar Technology Info


Description:

The Broan Sky Series Energy Recovery Ventilator (ERV) 100 CFM is available with side or plus side ports option and the perfect solution for high-rise residential towers or new construction in southern regions. The Sky Series features ceiling-mounted ERVs that minimize the installation footprint, and provides easy access for routine maintenance. Also, a great solution for homes in regions with excessive humidity.

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

ERV: Energy Recovery Ventilator
Air Flow: 50 - 100 CFM

ModelPorts SizePorts LocationDimensionsHousingCertified and Qualified ProductCompatible Controls
BRL-ERV100S5" RoundSide27-1/8" W x 20" D x 9" H22 Gauge Galvanized SteelHVI CertifiedVT6W, VB60W, VT4W, VT7W, VB20W
BRL-ERV100SP5" RoundPlus Side27-1/8" W x 20" D x 9" H22 Gauge Galvanized SteelHVI and ENERGY STAR™ VT6W, VB60W, VT4W, VT8W, VT7W, VB20W
Optional Accessories: Wall Controls:
Optional Accessories:
BRL-V01269 image
BRL-V01269
Broan Whisper 4" Diameter Intake & Exhaust
$35.00 $50.00 30% Off
How Many?
BRL-V01271 image
BRL-V01271
Broan Whisper 6" Diameter Intake & Exhaust
$42.70 $61.00 30% Off
How Many?
BRL-V02863 image
BRL-V02863
Broan Whisper 5" Diameter Intake & Exhaust
$39.87 $56.97 30% Off
How Many?
BRL-V03585 image
BRL-V03585
Broan Whisper 8" Diameter Intake & Exhaust
$36.21 $50.72 29% Off
How Many?
BRL-VTYIK1 image
BRL-VTYIK1
Broan Tandem Transition Kit (Includes: Tandem Y, Complete Exterior Vent and Screws)
$161.19 $230.27 30% Off
How Many?
BRL-V12570 image
BRL-V12570
Broan Anti-Gust Intake 6" Diameter
$163.73 $214.50 24% Off
How Many?
BRL-V13940 image
BRL-V13940
Broan Optional Outside Port Kit
$182.40 $260.57 30% Off
How Many?
BRL-V04790 image
BRL-V04790
Broan Duct Connector Baffle 8" W x 12" D
$17.77 $25.39 30% Off
How Many?
BRL-V11001 image
BRL-V11001
Broan Air Flow Colar 6" Diameter
$123.66 $176.66 30% Off
How Many?
BRL-V11246 image
BRL-V11246
Broan Air Flow Colar 8" Diameter
$141.87 $202.67 30% Off
How Many?
BRL-V11247 image
BRL-V11247
Broan Air Flow Colar 7" Diameter
$137.26 $196.09 30% Off
How Many?
BRL-V00624 image
BRL-V00624
Broan Air Intake 9" W x 6" D x 9" H with Duct
$41.21 $57.73 29% Off
How Many?
BRL-V04316 image
BRL-V04316
Broan 5" Diameter Insulated Flexible Duct
$95.25 $136.08 30% Off
How Many?
BRL-V04399 image
BRL-V04399
Broan 8" Diameter Insulated Flexible Duct
$240.05 $342.94 30% Off
How Many?
BRL-ACCGSEF2 image
BRL-ACCGSEF2
Broan 2-Piece Core Foam Filter Kit
$43.61 $57.09 24% Off
How Many?
BRL-ACCGSFF2 image
BRL-ACCGSFF2
Broan 2-Piece HRV Core Foam Filters
$49.23 $70.34 30% Off
How Many?
BRL-ACCGSFH image
BRL-ACCGSFH
Broan HEPA Filter Only
$201.55 $287.93 30% Off
How Many?
BRL-ACCGSFHP10 image
BRL-ACCGSFHP10
Broan 1 Year HEPA Filter Multi-Pack (10-Pack)
$1718.36 $2435.32 29% Off
How Many?
BRL-ACCGSFP20 image
BRL-ACCGSFP20
Broan Pre-Filter Multi-Pack (10-Pack)
$473.04 $675.78 30% Off
How Many?
BRL-V03406 image
BRL-V03406
Broan 3-Piece Kit Foam Refills for Electronic Filter
$76.23 $106.77 29% Off
How Many?
BRL-641 image
BRL-641
Broan Aluminum Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen
$88.37 $126.24 30% Off
How Many?
Ship Method:

    Ships via UPS/FedEx Ground


Reference:
This item(s) is also sometimes listed under the following manufacturer numbers:

BroanBroan
ERV100S, ERV100SP
