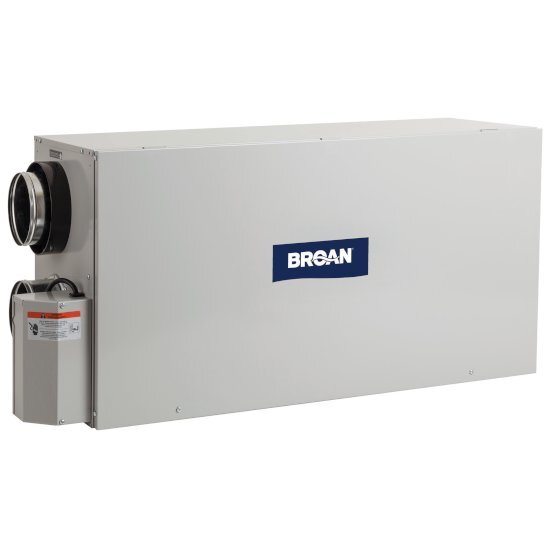

Broan Energy Recovery Ventilator (ERV - 100 CFM) HEPA, Side Port

Advanced Series ERV HEPA
Advanced Series ERV
Advanced Series Product View
Advanced Series Product View
Advanced Series Angle View
Advanced Series Angle View
Advanced Series Opened View
Advanced Series Opened View
Advanced Series Close Up View
Advanced Series Close Up View
Advanced Series Close Up View 2
Advanced Series Close Up View 2
HVI Certified and ENERGY STAR™ Qualified Product

Step 1: Choose Ventilation
Step 2: Choose Optional Wall Control Click Here
Step 3: Choose Optional Accessories Click Here

Price $2197.99
No Sales Tax, Except CT
sale Get $25 Store Gift Card on orders over $500
sale Get $50 Store Gift Card on orders over $1000
Shipping:
 Free Shipping
Model:
Choose a product from the options above
Qty?

Product Reviews

Shop for similar items:

Features:

  • Broan Energy Recovery Ventilator (ERV) HEPA, Side Port
  • Ideal for Medium to Large Homes
  • Ultra Quiet Operaton, Barely Audible at Low Speed (2.5 Sones)
  • HEPA Filtration Captures 99.97% of Allergens and Other Microscopic Particles
  • May Reduce Symptoms of Allergies or Respiratory Problems
  • Mounting Installation: Suspension by Chains and Springs
  • Speed Control on Unit: Low & High Speeds
  • Housing: Pre-Painted Steel
  • Other Modes Available with Main and Optional Wall Controls (Sold Separately)
  • Installing Fresh Air System
  • HRV and ERV Venmar Technology Info
  • Recommended: All Wiring Should be Done by Qualified Licensed Electrician

    (ERV) Energy Recovery Ventilator:
  • Material: Polymerized Paper
  • Continuous Air Flow: 50 - 100 CFM
  • Flow Type: Crossflow
  • 5" Diameter Ports Mean Smaller Duct to Ease Installation
  • Integrated Control
  • Removable Terminal Block to Ease Optional Wall Control Connections
  • Integrated Pressure Taps
  • Ultra Quiet Operaton
  • Furnace Interlock Capability
  • HVI Certified and ENERGY STAR™ Qualified Product
  • 5-Year Warranty


Description:

The Broan Energy Recovery Ventilator (ERV) HEPA 100 CFM, Side Port has HEPA filtration that captures 99.97% of allergens and other microscopic particles and may reduce symptoms of allergies or respiratory problems. When standard ventilation is not enough, the Advanced Series is the solution to offer superior filtration, airflow capacity or higher recovery efficiency. Broan's Advanced Series of HRVs and ERVs has the product range to meet every need. Recommended that all wiring should be done by qualified licensed electrician.

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

ERV Energy Recovery Ventilator: 50 - 100 CFM, Weight: 47 lbs.

Optional Accessories: Wall Controls:
Optional Accessories:
BRL-V01269 image
BRL-V01269
Broan Whisper 4" Diameter Intake & Exhaust
$35.00 $50.00 30% Off
How Many?
BRL-V01271 image
BRL-V01271
Broan Whisper 6" Diameter Intake & Exhaust
$42.70 $61.00 30% Off
How Many?
BRL-V02863 image
BRL-V02863
Broan Whisper 5" Diameter Intake & Exhaust
$39.87 $56.97 30% Off
How Many?
BRL-V03585 image
BRL-V03585
Broan Whisper 8" Diameter Intake & Exhaust
$36.21 $50.72 29% Off
How Many?
BRL-VTYIK1 image
BRL-VTYIK1
Broan Tandem Transition Kit (Includes: Tandem Y, Complete Exterior Vent and Screws)
$161.19 $230.27 30% Off
How Many?
BRL-V12570 image
BRL-V12570
Broan Anti-Gust Intake 6" Diameter
$163.73 $214.50 24% Off
How Many?
BRL-V13940 image
BRL-V13940
Broan Optional Outside Port Kit
$182.40 $260.57 30% Off
How Many?
BRL-V04790 image
BRL-V04790
Broan Duct Connector Baffle 8" W x 12" D
$17.77 $25.39 30% Off
How Many?
BRL-V11001 image
BRL-V11001
Broan Air Flow Colar 6" Diameter
$123.66 $176.66 30% Off
How Many?
BRL-V11246 image
BRL-V11246
Broan Air Flow Colar 8" Diameter
$141.87 $202.67 30% Off
How Many?
BRL-V11247 image
BRL-V11247
Broan Air Flow Colar 7" Diameter
$137.26 $196.09 30% Off
How Many?
BRL-V00624 image
BRL-V00624
Broan Air Intake 9" W x 6" D x 9" H with Duct
$41.21 $57.73 29% Off
How Many?
BRL-V04316 image
BRL-V04316
Broan 5" Diameter Insulated Flexible Duct
$95.25 $136.08 30% Off
How Many?
BRL-V04399 image
BRL-V04399
Broan 8" Diameter Insulated Flexible Duct
$240.05 $342.94 30% Off
How Many?
BRL-ACCGSEF2 image
BRL-ACCGSEF2
Broan 2-Piece Core Foam Filter Kit
$43.61 $57.09 24% Off
How Many?
BRL-ACCGSFF2 image
BRL-ACCGSFF2
Broan 2-Piece HRV Core Foam Filters
$49.23 $70.34 30% Off
How Many?
BRL-ACCGSFH image
BRL-ACCGSFH
Broan HEPA Filter Only
$201.55 $287.93 30% Off
How Many?
BRL-ACCGSFHP10 image
BRL-ACCGSFHP10
Broan 1 Year HEPA Filter Multi-Pack (10-Pack)
$1718.36 $2435.32 29% Off
How Many?
BRL-ACCGSFP20 image
BRL-ACCGSFP20
Broan Pre-Filter Multi-Pack (10-Pack)
$473.04 $675.78 30% Off
How Many?
BRL-V03406 image
BRL-V03406
Broan 3-Piece Kit Foam Refills for Electronic Filter
$76.23 $106.77 29% Off
How Many?
BRL-641 image
BRL-641
Broan Aluminum Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen
$88.37 $126.24 30% Off
How Many?
ModelTypeFiltration LevelPorts SizePorts LocationDimensionsUnit Electrical CharacteristicsCompatible Controls
BRL-ERVH100S(ERV)HEPA5" RoundSide39" W x 12" D x 17" H120 Volts, 60 Hz, 0.6 Amps, 68 WattsVT6W, VB60W, VT4W, VT8W, VT7W, VB20W

Ship Method:

    Ships via UPS/FedEx Ground


Reference:
This item(s) is also sometimes listed under the following manufacturer numbers:

BroanBroan
ERVH100S
