Broan Flex Series Heat Recovery Ventilator (HRV) or Energy Recovery Ventilator (ERV) 70 - 90 CFM, Side Ports

Flex Series HRV 77 CFM
Flex Series HRV 77 CFM
Flex Series HRV 90 CFM
Flex Series HRV 90 CFM
Broan Flex Series Energy Recovery Ventilator (ERV) 70 CFM, Side Ports, 19-13/16" W x 15-5/8" D x 16-5/16" H
ERV 70 CFM with Side Ports
Side Ports Left View
Side Ports Left View

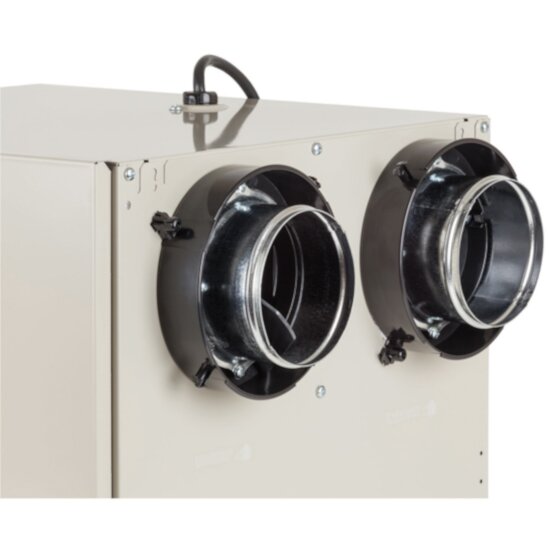

Side Ports Right View
Side Ports Right View
HVI Certified and ENERGY STAR™ Qualified Product

Step 1: Choose Ventilation
Step 2: Choose Optional Wall Control Click Here
Step 3: Choose Optional Accessories Click Here

$981.82 - $1192.68
No Sales Tax, Except CT
Shipping:
 Free Shipping
Model:
Choose a product from the options above
Qty?
View Cart

Product Reviews

Shop for similar items:

Features:

  • Broan Flex Series Recovery Ventilator
  • Heat Recovery Ventilator (HRV) 77 - 90 CFM
  • Energy Recovery Ventilator (HRV) 70 CFM
  • Port Location: Side Ports
  • Filtration Level: 30 PPI (Pores Per Inch)
  • Housing: Pre-Painted Steel
  • Mounting Installation: Suspension by Chains, Springs or Wall Brackets
  • Compatible with Wall Controls (Sold Separately)
  • HVI Certified and ENERGY STAR™ Qualified Product
  • Installing Fresh Air System
  • HRV and ERV Venmar Technology Info
  • Recommended: All Wiring Should be Done by Qualified Licensed Electrician

    BRL-ERV70S Energy Recovery Ventilator:
  • Ideal Choice for Condominiums, Apartments and Other Limited Space Applications that Require Up to 77 CFM of Continuous Ventilation
  • Can be Installed in Small Spaces such as Closet or Mechanical Room Above a Hot Water Tank
  • Material: Polymerized Paper
  • Continuous Air Flow: 35 - 70 CFM
  • 120 Volts, 60 Hz, 0.5 Amps, 60 Watts
  • Flow Type: Crossflow
  • Pressure Taps, Balancing Dampers, Integrated Hooks and Port Straps to Simplify Installation
  • Removable Terminal Block to Ease Optional Wall Control Connections
  • PSC Motor: Permanently Lubricated
  • 5-Year Warranty

    BRL-HRV80S Heat Recovery Ventilator:
  • Ideal Choice for Condominiums, Apartments and Other Limited Space Applications that Require Up to 77 CFM of Continuous Ventilation
  • Can be Installed in Small Spaces such as Closet or Mechanical Room Above a Hot Water Tank
  • Material: Polypropylene
  • Continuous Air Flow: 37 - 77 CFM
  • 120 Volts, 60 Hz, 0.5 Amps, 60 Watts
  • Flow Type: Crossflow
  • Pressure Taps, Balancing Dampers, Integrated Hooks and Port Straps to Simplify Installation
  • Removable Terminal Block to Ease Optional Wall Control Connections
  • PSC Motor: Permanently Lubricated
  • Limited Lifetime Warranty

    BRL-HRV90S Heat Recovery Ventilator:
  • Allows to Cover Ventilation Needs of Larger Applications
  • Can be Installed in Small Spaces such as Closet or Mechanical Room Above a Hot Water Tank
  • Continuous Air Flow: 47 - 90 CFM
  • 120 Volts, 60 Hz, 0.5 Amps, 72 Watts
  • Flow Type: Crossflow
  • Pressure Taps, Balancing Dampers, Integrated Hooks and Port Straps to Simplify Installation
  • Removable Terminal Block to Ease Optional Wall Control Connections
  • PSC Motor: Permanently Lubricated
  • Limited Lifetime Warranty


Description:

The Broan Flex Series Heat Recovery Ventilator (HRV) or Energy Recovery Ventilator (ERV) 70 - 90 CFM with Side Ports is the ideal choice for apartments, condominiums and homes where space is limited and standard ventilation is required. Designed with builders and contractors in mind, the Flex Series is all about installation flexibility and simplicity. Recommended that all wiring should be done by qualified licensed electrician.

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

BRL-ERV70S Energy Recovery Ventilator: Continuous Air Flow: 35 - 70 CFM
BRL-HRV80S Heat Recovery Ventilator: Continuous Air Flow: 37 -77 CFM
BRL-HRV90S Heat Recovery Ventilator: Continuous Air Flow: 47 -90 CFM

ModelTypePorts SizePorts LocationDimensionsWeightUnit Electrical CharacteristicsCompatible Controls
BRL-ERV70S(ERV)4" RoundSide19-13/16" W x 15-5/8" D x 16-5/16" H34 Lbs.120 Volts, 60 Hz, 0.5 Amps, 60 WattsVT6W, VB60W, VT4W, VT8W, VT7W, VB20W
BRL-HRV80S(HRV)4" RoundSide19-13/16" W x 15-5/8" D x 16-5/16" H30 Lbs.120 Volts, 60 Hz, 0.5 Amps, 60 WattsVT6W, VB60W, VT4W, VT8W, VT7W, VB20W
BRL-HRV90S(HRV)4" RoundSide19-13/16" W x 15-5/8" D x 16-5/16" H30 Lbs.120 Volts, 60 Hz, 0.5 Amps, 72 WattsVT6W, VB60W, VT4W, VT8W, VT7W, VB20W
Optional Accessories: Wall Controls:
Optional Accessories:
BRL-V01269
Broan Whisper 4" Diameter Intake & Exhaust
$30.40
$38.94, You Save: 22%
How Many?
BRL-V01271
Broan Whisper 6" Diameter Intake & Exhaust
$37.09
$47.55, You Save: 22%
How Many?
BRL-V02863
Broan Whisper 5" Diameter Intake & Exhaust
$34.64
$46.21, You Save: 25%
How Many?
BRL-V03585
Broan Whisper 8" Diameter Intake & Exhaust
$35.50
$50.72, You Save: 30%
How Many?
BRL-VTYIK1
Broan Tandem Transition Kit (Includes: Tandem Y, Complete Exterior Vent and Screws)
$130.22
$174.00, You Save: 25%
How Many?
BRL-V12570
Broan Anti-Gust Intake 6" Diameter
$160.52
$214.50, You Save: 25%
How Many?
BRL-V13940
Broan Optional Outside Port Kit
$158.42
$211.69, You Save: 25%
How Many?
BRL-V04790
Broan Duct Connector Baffle 8" W x 12" D
$14.40
$19.89, You Save: 28%
How Many?
BRL-V11001
Broan Air Flow Colar 6" Diameter
$107.38
$137.79, You Save: 22%
How Many?
BRL-V11246
Broan Air Flow Colar 8" Diameter
$110.00
$146.97, You Save: 25%
How Many?
BRL-V11247
Broan Air Flow Colar 7" Diameter
$106.45
$136.55, You Save: 22%
How Many?
BRL-V00624
Broan Air Intake 9" W x 6" D x 9" H with Duct
$40.41
$57.73, You Save: 30%
How Many?
BRL-V04316
Broan 5" Diameter Insulated Flexible Duct
$73.86
$94.73, You Save: 22%
How Many?
BRL-V04399
Broan 8" Diameter Insulated Flexible Duct
$186.10
$238.75, You Save: 22%
How Many?
BRL-ACCGSEF2
Broan 2-Piece Core Foam Filter Kit
$42.76
$57.09, You Save: 25%
How Many?
BRL-ACCGSFF2
Broan 2-Piece HRV Core Foam Filters
$42.75
$57.07, You Save: 25%
How Many?
BRL-ACCGSFH
Broan HEPA Filter Only
$175.05
$233.91, You Save: 25%
How Many?
BRL-ACCGSFHP10
Broan 1 Year HEPA Filter Multi-Pack (10-Pack)
$1652.27
$2435.32, You Save: 32%
How Many?
BRL-ACCGSFP2
Broan Pre-Filter Kit (2-Piece)
$39.38
$52.60, You Save: 25%
How Many?
BRL-ACCGSFP20
Broan Pre-Filter Multi-Pack (10-Pack)
$366.76
$490.07, You Save: 25%
How Many?
BRL-V03406
Broan 3-Piece Kit Foam Refills for Electronic Filter
$74.74
$106.77, You Save: 30%
How Many?
BRL-641
Broan Aluminum Wall Cap for 6" Round Duct with Backdraft Damper and Bird Screen
$64.10
$92.84, You Save: 31%
How Many?
Ship Method:

    Ships via UPS/FedEx Ground


Reference:

    This item(s) is also sometimes listed under the following manufacturer numbers:

    BroanBroan
    HRV80S, HRV90S, ERV70S
