S&P HR Series HR220H HRV, Painted Cabinet, Top Port Location, 70-220 CFM

S&P HR Series HR220H HRV, Painted Cabinet, Top Port Location, 70-220 CFM
S&P HR Series HR220H HRV, Painted Cabinet, Top Port Location, 70-220 CFM

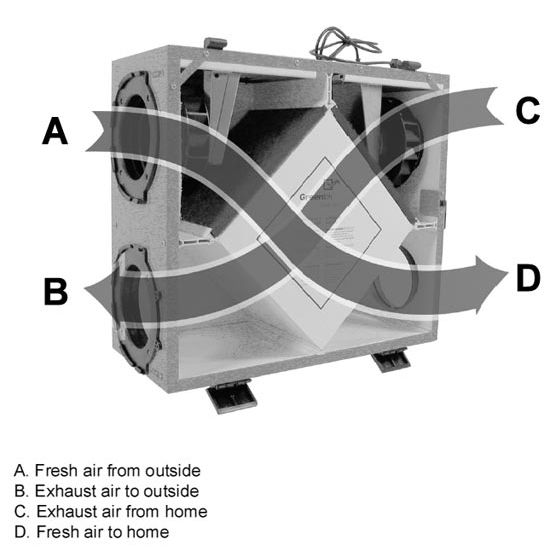

Airflow Illustration
Step 1: Choose Home Recovery Ventilator
Step 2: Choose Optional Timers and Controls Click here

Todays Deal: $1467.67 $2096.68  30% Off
No Sales Tax, Except CT
 Free Shipping

Product Reviews


  • Model HR220H 70-220 CFM
  • Ventilation up to 5000 square feet
  • Polypropylene HRV core
  • 3 operating modes (Intermittent, Continuous and High Speed)
  • Duotrol balancing system reduces noise that would be produced by balancing dampers
  • Unique collar system for easy manipulation of duct for better and quicker installation
  • Painted galvanized steel case
  • Designed for simple installation by a single person
  • Washable filters
  • Fully insulated case
  • Limited lifetime warranty on the heat recovery core
  • 5-year warranty on balance of unit
  • HVI Certified

    HRV System
  • Duotrol Systems: Selects ventilation modes (OFF, CONT or INTER), also to adjust the continuous airflow rates: Increasing (+)/Decreasing (-).
  • Motors(2): Designed with high performance and reliability, they are maintenance free for comfort and peace of mind.
  • Synthetic Filters: Capture the largest particle & protects the heat recovery core from potential obstruction by these particles.
  • Heat Recovery Core: A polypropylene cross-flow type it is designed to transfer the heat between both exhaust & supply air streams without allowing any contamination or mixing of both air streams to maximize the efficient and improve indoor air quality.
  • Condensate Drain Pan & Drainage Hose: Captures the water that accumulates during the heat transfer and defrosts sequence in the fall, winter & early spring seasons. Drain hose is connected to the drain pan and serves as drainage for the accumulation of water. It is normal during summer months to find no condensation in drain pan or in drainage hose.
  • Automatic Defrost Sequence: The defrost sequence is electronically controlled to measure the incoming outdoor air temperature, the sequence is activated at -5°C (23°F) and colder and the duration is for 5 minutes then returns to normal operation for 25 minutes. This system eliminates that the heat recovery core doesn’t build with ice or freezes.
  • Defrost sequence: Supply fan shuts down, the exhaust fan speed increases pending the measured outside temperature.

    product image


The HR Series HR220H Heat Recovery Ventilator (HRV) 70-220 CFM by S&P has been engineered & designed to improve indoor air quality by reducing excess humidity or other contaminants during the winter time, and replacing this air by fresh filtered air from the outdoors. Ideal for use in cold climates where home heating is essential, the HR Series HR220H ventilator uses one motor to exhaust stale room air and another motor to bring fresh outdoor air back into the house. The technology of a plate heat recovery core is that it transfers warm ambient air from one airstream to the other without mixing the air streams for maximum efficiency and comfort. During colder seasons, the unit heat recovery core (polypropylene core) will reclaim the heat from the outgoing stale air and use this heat to temper the incoming fresh air, which reduces the cost of effectively ventilating the home during winter. This process is reversed in the summer months.


(W = side to side) (D = front to back) (H = top to bottom)

Optional Timers & Controls - Sold with Ventilation System Orders Only:
SL-HRT-3 image
S&P HR Series Percentage Timer Control for Models SL-HR100V, SL-HR160H, SL-HR220H
$77.50 $110.71 30% Off
How Many?
SL-HRRD-1 image
S&P HR Series Push Button Point-of-Use Control for Models SL-HR100V, SL-HR160H, SL-HR220H
$82.77 $118.25 30% Off
How Many?
SL-HRRD-3P image
S&P HR Series Percentage Timer Control with Furnace Interlock for Models SL-HR100V, SL-HR160H, SL-HR220H
$185.30 $264.71 30% Off
How Many?
SL-FT247 image
S&P FT247 Programmable Fan Timer
$85.46 $122.08 30% Off
How Many?
